# CRISPRzip
[](https://opensource.org/licenses/MIT)
Welcome to the codebase of CRISPRzip from the [Depken Lab](https://depkenlab.tudelft.nl/) at TU
Delft.
## About the project

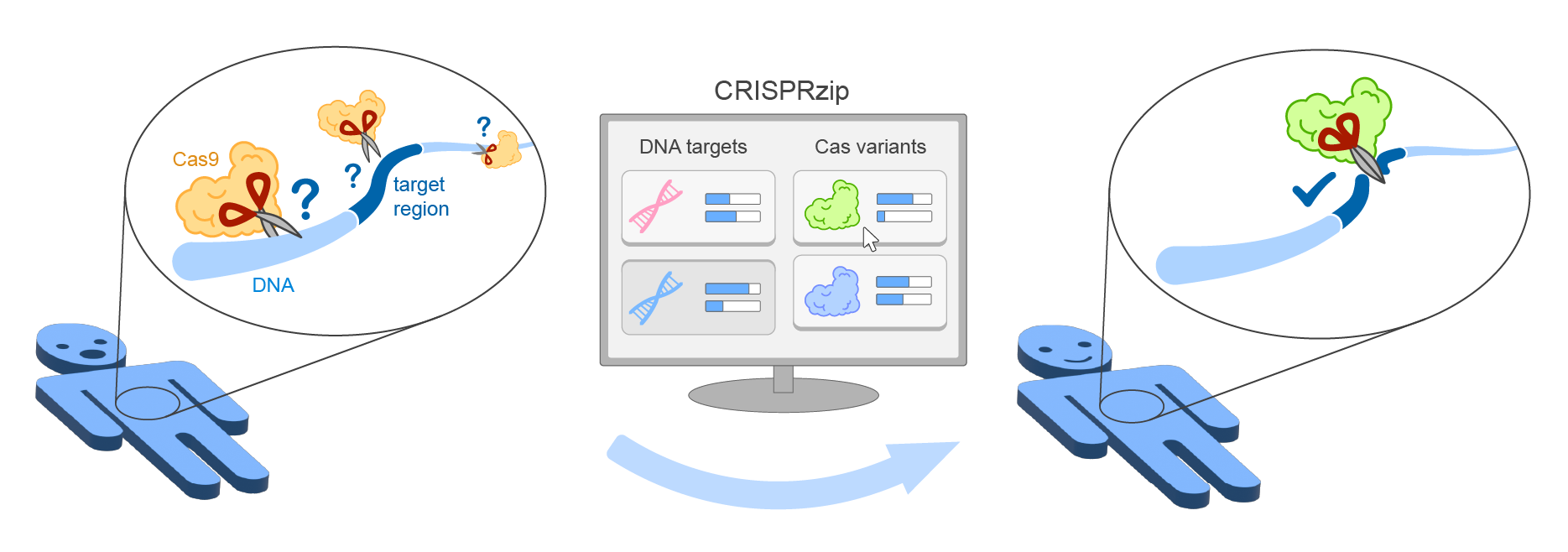

CRISPRzip is a physics-based model to study the target
recognition dynamics of CRISPR-associated nucleases like Cas9
([Eslami-Mossalam, 2022](#references)). Their interactions with target DNA is represented
as an energy landscape, with which you can simulate binding and cleavage
kinetics. The parameters have been obtained by machine learning on
high-throughput data. CRISPRzip makes quantitative predictions of on-target
efficiency and off-target risks of different guide RNAs.
With CRISPRzip, we hope to contribute to assessing
the risks that come with particular choices in CRISPR application, and as such
contribute to the development of safe gene editing technology.
### References
Eslami-Mossallam B et al. (2022) *A kinetic model predicts SpCas9 activity,
improves off-target classification, and reveals the physical basis of
targeting fidelity.* Nature Communications.
[10.1038/s41467-022-28994-2](https://doi.org/10.1038/s41467-022-28994-2)
## Installation
CRISPRzip is available on [PyPi](https://pypi.org/) and can be installed
with [pip](https://pip.pypa.io/en/stable/).
### User installation
Although CRISPRzip can be directly installed from pip, creating a virtual
environment makes it easier to manage dependencies. Below you can see some
intructions on how to generate a virtual environment with
[venv](https://docs.python.org/3/library/venv.html) assuming you already
have python installed in a bash-like terminal.
```shell
python -m venv crisprzip-venv
source crisprzip-venv/bin/activate
pip install crisprzip
```
### Developer installation
To be able to make changes and contributions to CRISPRzip, you will need to
get your own copy of the source code and install software dependencies on
your own. Assuming you have a python and git installed in a bash-like
terminal, the installation process can be done with the following
instructions.
```shell
git clone https://github.com/hiddeoff/crisprzip.git
cd crisprzip
python -m venv crisprzip-venv
source crisprzip-venv/bin/activate
pip install -e .
```
Please use our
[contributing guidelines](https://github.com/hiddeoff/crisprzip/blob/main/CONTRIBUTING.md)
if you would like us to consider your developments in a future CRISPRzip
release
### Verifying installation
CRISPRzip development includes a cross-platform compatibility and test
[workflow](.github/workflows/compatibility-test.yml). If you would like to
verify your local installation, please follow the Developer Installation
instructions, then run the following test.
```shell
source crisprzip-venv/bin/activate
pip install -e '.[tests]' # installs pytest and pandas
pytest tests/cleavage_binding_prediction/test_cleavage_binding_prediction.py -v
```
You can also follow the user installation and execute the code in the
Usage section below.
## Usage
CRISPRzip makes predictions about cleavage and binding activity on on- and
off-targets. First, you define the protospacer and target sequence, and then,
you can predict the fraction cleaved or bound.
```python
# 1. load parameter set
from crisprzip.kinetics import load_landscape
searcher = load_landscape("sequence_params")
# 2. define Cas9, gRNA and DNA target
searchertargetcomplex = searcher.probe_sequence(
protospacer = "AGACGCATAAAGATGAGACGCTGG",
target_seq = "AGACCCATTAAGATGAGACGCGGG", # A13T G17C
)
# 3. predict activity
f_clv = searchertargetcomplex.get_cleaved_fraction(
time=600, # 10 minutes
on_rate=1E-1
)
f_bnd = searchertargetcomplex.get_bound_fraction(
time=600, # 10 minutes
on_rate=1E-1
)
# 4. format output
print(f"After 10 minutes, the target (A13T G17C) is ...")
print(f"- cleaved for {100 * f_clv:.1f}% by Cas9")
print(f" or ")
print(f"- bound for {100 * f_bnd:.1f}% by dCas9")
```
Output:
```
After 10 minutes, the target (A13T G17C) is ...
- cleaved for 10.5% by Cas9
or
- bound for 94.2% by dCas9
```
See the [tutorial](examples/tutorial.ipynb) or the
[docs](https://hiddeoff.github.io/crisprzip/) for more examples how to explore
sequence, time and concentration dependency.
## Contributing
We encourage contributions in any form - reporting bugs, suggesting features,
drafting code changes. Read our [Contributing guidelines](./CONTRIBUTING.md) and
our [Code of Conduct](./CODE_OF_CONDUCT.md).
## Acknowledgements
Many thanks to [Elviss Dvinskis](https://github.com/edvinskis),
[Raúl Ortiz](https://github.com/rortizmerino) and [Aysun Urhan](https://github.com/aysunrhn)
from the [DCC team at TU Delft](https://www.tudelft.nl/en/library/support/library-for-researchers/setting-up-research/dcc)
for their support to get this package released!
## Waiver
Technische Universiteit Delft hereby disclaims all copyright interest in the
program “CRISPRzip” (a physics-based CRISPR activity predictor)
written by the Author(s).
Paulien Herder, Dean of Applied Sciences
(c) 2024, Hidde Offerhaus, Delft, The Netherlands.
