# Entity relation diagrams generator
eralchemy2 generates Entity Relation (ER) diagram (like the one below) from databases or from SQLAlchemy models.
Works with SQLAlchemy < 1.4 but also with versions greater than 1.4
## Example
[Example for NewsMeme](https://bitbucket.org/danjac/newsmeme)
## Quick Start
### Install
To install eralchemy2, just do:
$ pip install eralchemy2
`eralchemy2` requires [GraphViz](http://www.graphviz.org/download) to generate the graphs and Python. Both are available for Windows, Mac and Linux.
For Debian based systems, run:
$ apt install graphviz libgraphviz-dev
before installing eralchemy2.
### Install using conda
There is also a packaged version in conda-forge, which directly installs the dependencies:
$ conda install -c conda-forge eralchemy2
### Usage from Command Line
#### From a database
$ eralchemy2 -i sqlite:///relative/path/to/db.db -o erd_from_sqlite.pdf
The database is specified as a [SQLAlchemy](https://docs.sqlalchemy.org/en/20/core/engines.html#database-urls)
database url.
#### From a markdown file.
$ curl 'https://raw.githubusercontent.com/maurerle/eralchemy2/main/example/newsmeme.er' > markdown_file.er
$ eralchemy2 -i 'markdown_file.er' -o erd_from_markdown_file.pdf
#### From a Postgresql DB to a markdown file excluding tables named `temp` and `audit`
$ eralchemy2 -i 'postgresql+psycopg2://username:password@hostname:5432/databasename' -o filtered.er --exclude-tables temp audit
#### From a Postgresql DB to a markdown file excluding columns named `created_at` and `updated_at` from all tables
$ eralchemy2 -i 'postgresql+psycopg2://username:password@hostname:5432/databasename' -o filtered.er --exclude-columns created_at updated_at
#### From a Postgresql DB to a markdown file for the schemas `schema1` and `schema2`
$ eralchemy2 -i 'postgresql+psycopg2://username:password@hostname:5432/databasename' -s "schema1, schema2"
#### Specify Output Mode
$ eralchemy2 -i 'markdown_file.er' -o erd_from_markdown_file.md -m mermaid_er
### Usage from Python
```python
from eralchemy2 import render_er
## Draw from SQLAlchemy base
render_er(Base, 'erd_from_sqlalchemy.png')
## Draw from database
render_er("sqlite:///relative/path/to/db.db", 'erd_from_sqlite.png')
```
## Architecture

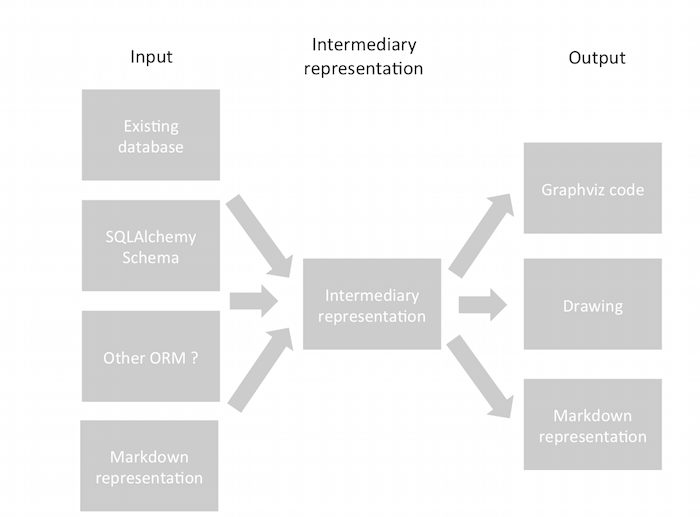

Thanks to it's modular architecture, it can be connected to other ORMs/ODMs/OGMs/O*Ms.
## Contribute
Every feedback is welcome on the [GitHub issues](https://github.com/maurerle/eralchemy2/issues).
### Development
Install the development dependencies using
$ pip install -e .[ci,dev]
Make sure to run the pre-commit to fix formatting
$ pre-commit run --all
All tested PR are welcome.
## Running tests
This project uses the pytest test suite.
To run the tests, use : `$ pytest` or `$ tox`.
Some tests require having a local PostgreSQL database with a schema named test in a database
named test all owned by a user named eralchemy with a password of eralchemy.
If docker compose is available, one can use `docker compose up -d` for this purpose.
You can deselct the tests which require a PostgreSQL database using:
$ pytest -m "not external_db"
## Publishing a release
$ rm -r dist && python -m build && python3 -m twine upload --repository pypi dist/*
## Notes
eralchemy2 is a fork of its predecessor [ERAlchemy](https://github.com/Alexis-benoist/eralchemy) by @Alexis-benoist, which is not maintained anymore and does not work with SQLAlchemy > 1.4.
If it is maintained again, I'd like to push the integrated changes upstream.
ERAlchemy was inspired by [erd](https://github.com/BurntSushi/erd), though it is able to render the ER diagram directly
from the database and not just only from the `ER` markup language.
Released under an Apache License 2.0
Initial Creator: Alexis Benoist [Alexis_Benoist](https://github.com/Alexis-benoist)
