# HEAS — Hierarchical Evolutionary Agent Simulation
**HEAS** is a framework for building **hierarchical agent simulations**, running **evolutionary search**, comparing strategies via **scenarios × participants** (arena & tournament), and generating **clean visualizations**.
* **Hierarchy runtime.** Compose simulations from **layers** of **streams**; each stream owns a `step()` and writes to a shared context.
* **Evolutionary tuner.** Single or multi‑objective; hall‑of‑fame and stats out of the box.
* **Game module.** Define scenarios, run arenas, score episodes, and **vote** winners.
* **Torch‑friendly.** Drop in `nn.Module` policies; convenient flatten/unflatten & device helpers.
* **Visualizations.** Plot per‑step traces, Pareto fronts, tournament outcomes, and draw the layer/stream graph.
* **CLI.** One command to run sims, tune, evaluate, play tournaments, and export plots.

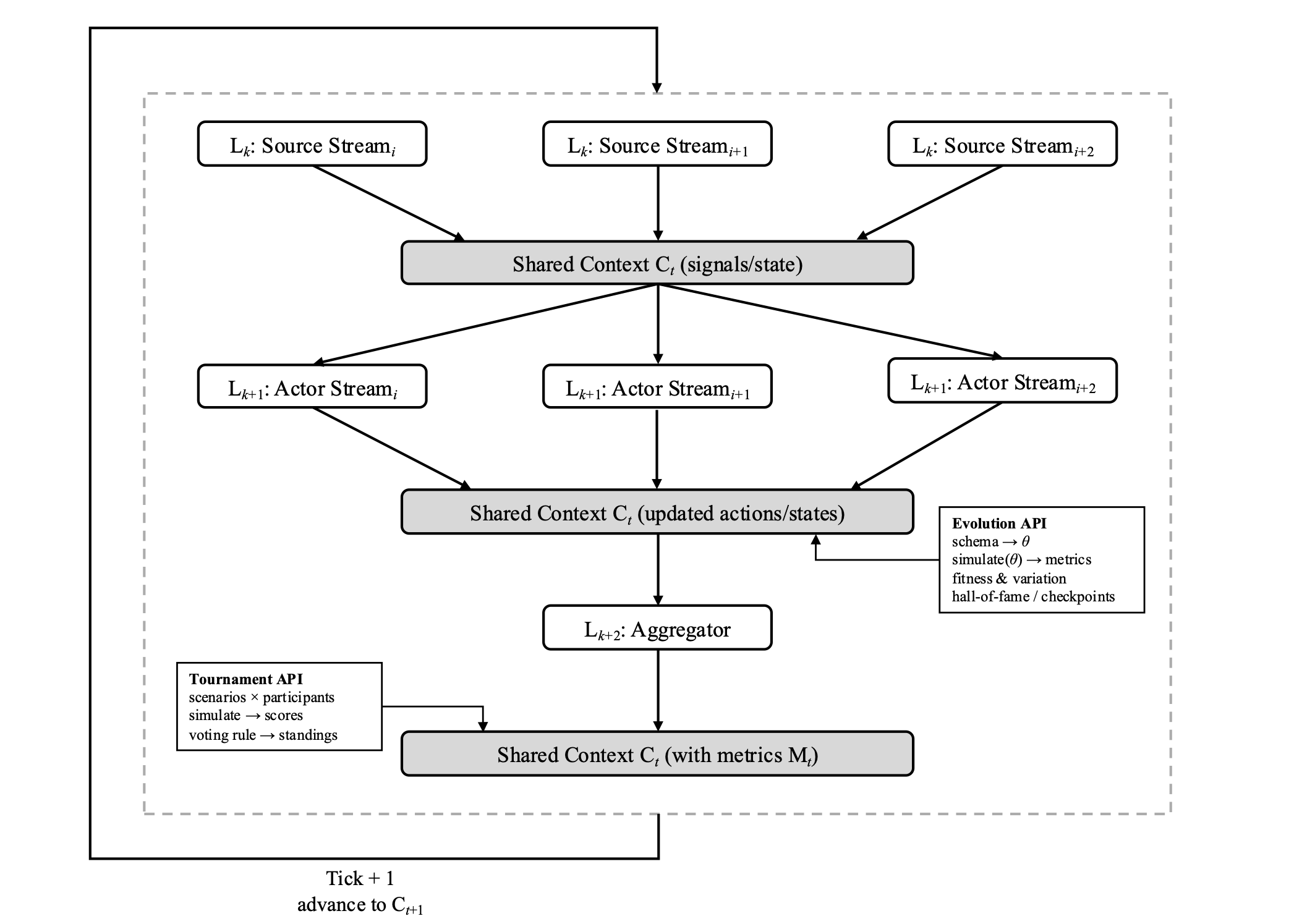

*Figure. Abstract Stream–layer Architecture in HEAS.*
---
## Install
```bash
pip install heas
```
---
## Quickstart — 5 minutes
### 1) Minimal hierarchical sim (2 layers, 2 streams)
```python
from typing import Dict, Any
import random
from heas.hierarchy import Stream, StreamSpec, LayerSpec, make_model_from_spec
from heas.config import Experiment
from heas.api import simulate
# Producer: writes price into the shared context
class Price(Stream):
def __init__(self, name, ctx, start=100.0, drift=0.03, noise=0.05):
super().__init__(name, ctx)
self.p=float(start); self.drift=float(drift); self.noise=float(noise)
def step(self):
self.p += self.drift + random.gauss(0, self.noise)
self.ctx.data[f"{self.name}.price"] = self.p
def metrics_step(self): return {"price": self.p}
def metrics_episode(self): return {"final_price": self.p}
# Consumer: reads price and trades a tiny position
class Policy(Stream):
def __init__(self, name, ctx, alpha=0.05, x_key="L1.price"):
super().__init__(name, ctx)
self.alpha=float(alpha); self.key=x_key
self.pos=0.0; self.pnl=0.0; self.prev=None
def step(self):
x = float(self.ctx.data.get(self.key, self.prev if self.prev is not None else 100.0))
if self.prev is not None:
sig = x - self.prev
self.pos += self.alpha * sig
self.pnl += self.pos * (x - self.prev)
self.prev = x
self.ctx.data[f"{self.name}.pnl"] = self.pnl
def metrics_step(self): return {"pos": self.pos, "pnl": self.pnl}
def metrics_episode(self): return {"final_pos": self.pos, "final_pnl": self.pnl}
# Spec → model_factory → simulate
def spec(alpha=0.05, drift=0.03, noise=0.05):
return [
LayerSpec([StreamSpec("L1", Price, dict(start=100.0, drift=drift, noise=noise))]),
LayerSpec([StreamSpec("L2", Policy, dict(alpha=alpha, x_key="L1.price"))]),
]
def make_model(kwargs: Dict[str, Any]):
return make_model_from_spec(spec(alpha=kwargs.get("alpha", 0.05),
drift=kwargs.get("drift", 0.03),
noise=kwargs.get("noise", 0.05)),
seed=kwargs.get("seed", 123))({})
exp = Experiment(model_factory=make_model, steps=20, episodes=1, seed=123)
sim = simulate(exp)
print(sim["episodes"][0]["episode"]) # {"L1.final_price": ..., "L2.final_pnl": ...}
```
### 2) Evolutionary optimization (single objective)
```python
from heas.schemas.genes import Real
from heas.config import Algorithm
from heas.api import optimize
from heas.agent.runner import run_episode
from heas.hierarchy import make_model_from_spec
# Evolve 'drift' to maximize final PnL → minimize negative PnL
from heas.agent.runner import run_episode
from heas.hierarchy import make_model_from_spec
def objective(genome):
drift = float(genome[0])
mf = make_model_from_spec(spec(alpha=0.05, drift=drift, noise=0.05), seed=123)
out = run_episode(mf, steps=40, seed=123)
pnl = out["episode"]["L2.final_pnl"]
return (-pnl,) # minimize negative PnL
SCHEMA = [Real("drift", -0.05, 0.10)]
algo = Algorithm(objective_fn=objective, genes_schema=SCHEMA, pop_size=16, ngen=4, strategy="nsga2", out_dir="runs/demo")
opt = optimize(Experiment(model_factory=lambda kw: None, steps=1, episodes=1, seed=123), algo)
print("Top solutions:", opt["best"][:3])
```
### 3) Scenarios × participants (Arena & Tournament)
```python
from heas.game import make_grid, Tournament
# Scenarios
a = make_grid({"region": ["A","B"], "gov": ["Central","Federal"]}).scenarios
participants = ["TeamA","TeamB"]
# Build a model from (scenario, participant)
from heas.hierarchy import make_model_from_spec
def build_model(scenario, participant, ctx):
drift = 0.02 if scenario.params["region"]=="A" else 0.04
alpha = 0.05 if participant=="TeamA" else 0.08
return make_model_from_spec(spec(alpha=alpha, drift=drift, noise=0.05), seed=ctx.get("seed", 0))
# Score: final PnL
def score_fn(ep_row, participant):
return float(ep_row.get("final_pnl", ep_row.get("L2.final_pnl", 0.0)))
T = Tournament(build_model)
play = T.play(a, participants, steps=25, episodes=5, seed=123,
score_fn=score_fn, voter="argmax")
print(play.per_episode.head())
print(play.votes.head())
```
### 4) Visualize
```python
# pip install matplotlib
from heas.vis import plot_steps, plot_votes_matrix, plot_tournament_overview, plot_architecture
# Per-step traces (faceted by scenario, colored by participant)
plot_steps(play.per_step, x="t", y_cols=["L2.pnl"], facet_by="scenario", hue="participant",
title="PnL over time by scenario × participant")
# Votes matrix
plot_votes_matrix(play.votes)
# Scores (mean ± std) per scenario
plot_tournament_overview(play.per_episode)
# Architecture diagram (from a spec or a live model)
plot_architecture(spec(alpha=0.05, drift=0.03, noise=0.05), edges=[("L1","L2")])
```
---
## Torch policies (optional)
```python
import torch
from torch import nn
from heas.torch_integration.policies import MLPPolicy
from heas.torch_integration.params import flatten_params, unflatten_params
from heas.torch_integration.device import pick_device
DEV = pick_device(prefer_gpu=True)
class TorchPolicy(Policy):
def __init__(self, name, ctx, policy: nn.Module, x_key="L1.price", pos_scale=0.1):
super().__init__(name, ctx, alpha=0.0, x_key=x_key)
self.net = policy.to(DEV)
self.pos_scale = float(pos_scale)
def step(self):
x = float(self.ctx.data.get(self.key, self.prev if self.prev is not None else 100.0))
if self.prev is not None:
with torch.no_grad():
obs = torch.tensor([[x, 1.0]], dtype=torch.float32, device=DEV)
delta = float(self.net(obs).squeeze().item())
self.pos += self.pos_scale * delta
self.pnl += self.pos * (x - self.prev)
self.prev = x
self.ctx.data[f"{self.name}.pnl"] = self.pnl
net = MLPPolicy(in_dim=2, out_dim=1, hidden=(16,)).to(DEV)
def spec_torch(noise=0.05):
return [
LayerSpec([StreamSpec("L1", Price, dict(start=100.0, drift=0.03, noise=noise))]),
LayerSpec([StreamSpec("L2", TorchPolicy, dict(policy=net, x_key="L1.price", pos_scale=0.1))]),
]
```
---
## CLI cheat sheet
HEAS ships a single executable: `heas`
```bash
# 1) Run a model factory
heas run --factory path/to/module.py:make_model --steps 20 --episodes 2 --seed 123
# 2) Run a graph/spec/model (auto-coerced)
heas run-graph --graph heas.examples.hierarchy_example:make_model --steps 20 --episodes 1
# 3) Evolutionary tuning
heas tune --objective mypkg.objectives:objective --schema mypkg.schemas:SCHEMA \
--pop 32 --ngen 6 --strategy nsga2 --out runs/demo
# 4) Evaluate genotypes
heas eval --objective mypkg.objectives:objective --genotypes genotypes.json
# 5) Arena (scenarios × participants)
heas arena run \
--builder mypkg.builders:build_model \
--scenarios '{"grid":{"region":["A","B"],"gov":["Central","Federal"]}}' \
--participants "TeamA,TeamB" \
--steps 20 --episodes 3 --seed 123 --save-dir out/
# 6) Tournament with scoring + voting
heas tournament play \
--builder mypkg.builders:build_model \
--scenarios '{"grid":{"region":["A","B"],"gov":["Central","Federal"]}}' \
--participants ["TeamA","TeamB"] \
--score mypkg.scoring:score_fn --voter argmax \
--steps 25 --episodes 5 --seed 123 --save-dir out/
# 7) Visualizations from saved tables/JSON
heas viz steps --file out/per_step.csv --x t --facet scenario --hue participant --save out/steps.png
heas viz votes --file out/votes.csv --save out/votes.png
heas viz arch --graph mypkg.graphs:SPEC --save out/arch.png
heas viz log --file runs/demo/log.json --save out/log.png
heas viz pareto --file runs/demo/pareto.json --title "Pareto" --save out/pareto.png
```
---
## Project layout
```
heas/
api.py # simulate(), optimize(), evaluate()
config.py # Experiment, Algorithm, Evaluation
hierarchy/ # layers, streams, graph & orchestrator
agent/ # generic runner utilities (step episodes)
evolution/ # evolutionary toolbox & algorithms
game/ # scenarios, arena, tournament, artifacts, voting
torch_integration/ # policies, params flatten/unflatten, device helpers
vis/ # plotting utilities (steps, votes, Pareto, architecture)
cli/ # 'heas' CLI entrypoint
examples/ # runnable examples
```
---
## Concepts
* **Stream**: A modular process implementing step() and optional metrics_step() / metrics_episode(), using ctx.data.
* **Layer**: An ordered collection of streams; layers execute sequentially.
* **Graph / Model**: The simulation composed of layers, orchestrated with a clock and shared context.
* **Experiment**: Defines the model factory, number of steps, episodes, and RNG seed.
* **Algorithm**: Manages evolutionary search logic, including objectives, gene schemas, and optimization parameters.
* **Arena/Tournament**: Evaluates different participant models across scenarios, with scoring and voting for outcome determination.
### Metric hooks
* `metrics_step(self) -> dict`: per-step metrics (merged into the per-step table).
* `metrics_episode(self) -> dict`: final metrics (merged into the episode summary).
### Seeding & reproducibility
* `Experiment.seed` sets the episode seed.
* Build your own RNGs inside streams if you need independent streams.
---
## Configuration objects
```python
from heas.config import Experiment, Algorithm, Evaluation
```
* **Experiment**: `model_factory`, `steps`, `episodes`, `seed`.
* **Algorithm**: `objective_fn`, `genes_schema`, `pop_size`, `ngen`, `strategy`, `cx_prob`, `mut_prob`, `out_dir`.
* **Multi‑objective**: set `algo.fitness_weights = (-1.0, -1.0, ...)` to declare objectives (negative = minimize).
* **Evaluation**: batch evaluate a list of genotypes with an objective.
Gene schemas live in `heas.schemas.genes` (e.g., `Real`, `Int`, `Bool`, `Cat`).
---
## Visualizations
`heas.vis` provides ready plots:
* `plot_steps(df, x, y_cols, facet_by, hue)` — per-step traces.
* `plot_tournament_overview(per_episode)` — score bars by scenario.
* `plot_votes_matrix(votes)` — episode winners by scenario.
* `plot_logbook_curves(logbook)` — min/avg/max over generations.
* `plot_pareto_front(points)` — scatter of two objectives.
* `plot_architecture(spec_or_model, edges=None)` — layer/stream diagram.
All functions return a Matplotlib figure.
---
### Citation
If you use **HEAS** in your research, please cite our paper:
Zhang, R., Nie, L., Zhao, X. (2025). HEAS: Hierarchical Evolutionary Agent Simulation Framework for Cross-Scale Modeling and Multi-Objective Search. arXiv preprint arXiv:2508.15555
```bibtex
@article{zhang2025heas,
title={HEAS: Hierarchical Evolutionary Agent Simulation Framework for Cross-Scale Modeling and Multi-Objective Search},
author={Zhang, Ruiyu and Nie, Lin and Zhao, Xin},
journal={arXiv preprint arXiv:2508.15555},
year={2025},
}
```
---
## License
© 2025. Released under the GNU Lesser General Public License v3.0.
Raw data
{
"_id": null,
"home_page": null,
"name": "heas",
"maintainer": null,
"docs_url": null,
"requires_python": ">=3.9",
"maintainer_email": null,
"keywords": "evolutionary computation, agent-based simulation, hierarchical systems, multi-objective optimization",
"author": null,
"author_email": "Ruiyu Zhang <ruiyuzh@connect.hku.hk>",
"download_url": "https://files.pythonhosted.org/packages/2f/0f/bed673555717fa8999a9839be6b226331637390b0c5c05c9b631698f850f/heas-0.2.0.tar.gz",
"platform": null,
"description": "# HEAS \u2014 Hierarchical Evolutionary Agent Simulation\n\n**HEAS** is a framework for building **hierarchical agent simulations**, running **evolutionary search**, comparing strategies via **scenarios \u00d7 participants** (arena & tournament), and generating **clean visualizations**.\n\n* **Hierarchy runtime.** Compose simulations from **layers** of **streams**; each stream owns a `step()` and writes to a shared context.\n* **Evolutionary tuner.** Single or multi\u2011objective; hall\u2011of\u2011fame and stats out of the box.\n* **Game module.** Define scenarios, run arenas, score episodes, and **vote** winners.\n* **Torch\u2011friendly.** Drop in `nn.Module` policies; convenient flatten/unflatten & device helpers.\n* **Visualizations.** Plot per\u2011step traces, Pareto fronts, tournament outcomes, and draw the layer/stream graph.\n* **CLI.** One command to run sims, tune, evaluate, play tournaments, and export plots.\n\n\n\n\n\n*Figure. Abstract Stream\u2013layer Architecture in HEAS.*\n\n---\n\n## Install\n\n```bash\npip install heas\n```\n\n---\n\n## Quickstart \u2014 5 minutes\n\n### 1) Minimal hierarchical sim (2 layers, 2 streams)\n\n```python\nfrom typing import Dict, Any\nimport random\n\nfrom heas.hierarchy import Stream, StreamSpec, LayerSpec, make_model_from_spec\nfrom heas.config import Experiment\nfrom heas.api import simulate\n\n# Producer: writes price into the shared context\nclass Price(Stream):\n def __init__(self, name, ctx, start=100.0, drift=0.03, noise=0.05):\n super().__init__(name, ctx)\n self.p=float(start); self.drift=float(drift); self.noise=float(noise)\n def step(self):\n self.p += self.drift + random.gauss(0, self.noise)\n self.ctx.data[f\"{self.name}.price\"] = self.p\n def metrics_step(self): return {\"price\": self.p}\n def metrics_episode(self): return {\"final_price\": self.p}\n\n# Consumer: reads price and trades a tiny position\nclass Policy(Stream):\n def __init__(self, name, ctx, alpha=0.05, x_key=\"L1.price\"):\n super().__init__(name, ctx)\n self.alpha=float(alpha); self.key=x_key\n self.pos=0.0; self.pnl=0.0; self.prev=None\n def step(self):\n x = float(self.ctx.data.get(self.key, self.prev if self.prev is not None else 100.0))\n if self.prev is not None:\n sig = x - self.prev\n self.pos += self.alpha * sig\n self.pnl += self.pos * (x - self.prev)\n self.prev = x\n self.ctx.data[f\"{self.name}.pnl\"] = self.pnl\n def metrics_step(self): return {\"pos\": self.pos, \"pnl\": self.pnl}\n def metrics_episode(self): return {\"final_pos\": self.pos, \"final_pnl\": self.pnl}\n\n# Spec \u2192 model_factory \u2192 simulate\ndef spec(alpha=0.05, drift=0.03, noise=0.05):\n return [\n LayerSpec([StreamSpec(\"L1\", Price, dict(start=100.0, drift=drift, noise=noise))]),\n LayerSpec([StreamSpec(\"L2\", Policy, dict(alpha=alpha, x_key=\"L1.price\"))]),\n ]\n\ndef make_model(kwargs: Dict[str, Any]):\n return make_model_from_spec(spec(alpha=kwargs.get(\"alpha\", 0.05),\n drift=kwargs.get(\"drift\", 0.03),\n noise=kwargs.get(\"noise\", 0.05)),\n seed=kwargs.get(\"seed\", 123))({})\n\nexp = Experiment(model_factory=make_model, steps=20, episodes=1, seed=123)\nsim = simulate(exp)\nprint(sim[\"episodes\"][0][\"episode\"]) # {\"L1.final_price\": ..., \"L2.final_pnl\": ...}\n```\n\n### 2) Evolutionary optimization (single objective)\n\n```python\nfrom heas.schemas.genes import Real\nfrom heas.config import Algorithm\nfrom heas.api import optimize\nfrom heas.agent.runner import run_episode\nfrom heas.hierarchy import make_model_from_spec\n\n# Evolve 'drift' to maximize final PnL \u2192 minimize negative PnL\nfrom heas.agent.runner import run_episode\nfrom heas.hierarchy import make_model_from_spec\n\ndef objective(genome):\n drift = float(genome[0])\n mf = make_model_from_spec(spec(alpha=0.05, drift=drift, noise=0.05), seed=123)\n out = run_episode(mf, steps=40, seed=123)\n pnl = out[\"episode\"][\"L2.final_pnl\"]\n return (-pnl,) # minimize negative PnL\n\nSCHEMA = [Real(\"drift\", -0.05, 0.10)]\nalgo = Algorithm(objective_fn=objective, genes_schema=SCHEMA, pop_size=16, ngen=4, strategy=\"nsga2\", out_dir=\"runs/demo\")\nopt = optimize(Experiment(model_factory=lambda kw: None, steps=1, episodes=1, seed=123), algo)\nprint(\"Top solutions:\", opt[\"best\"][:3])\n```\n\n### 3) Scenarios \u00d7 participants (Arena & Tournament)\n\n```python\nfrom heas.game import make_grid, Tournament\n\n# Scenarios\na = make_grid({\"region\": [\"A\",\"B\"], \"gov\": [\"Central\",\"Federal\"]}).scenarios\nparticipants = [\"TeamA\",\"TeamB\"]\n\n# Build a model from (scenario, participant)\nfrom heas.hierarchy import make_model_from_spec\n\ndef build_model(scenario, participant, ctx):\n drift = 0.02 if scenario.params[\"region\"]==\"A\" else 0.04\n alpha = 0.05 if participant==\"TeamA\" else 0.08\n return make_model_from_spec(spec(alpha=alpha, drift=drift, noise=0.05), seed=ctx.get(\"seed\", 0))\n\n# Score: final PnL\ndef score_fn(ep_row, participant):\n return float(ep_row.get(\"final_pnl\", ep_row.get(\"L2.final_pnl\", 0.0)))\n\nT = Tournament(build_model)\nplay = T.play(a, participants, steps=25, episodes=5, seed=123,\n score_fn=score_fn, voter=\"argmax\")\nprint(play.per_episode.head())\nprint(play.votes.head())\n```\n\n### 4) Visualize\n\n```python\n# pip install matplotlib\nfrom heas.vis import plot_steps, plot_votes_matrix, plot_tournament_overview, plot_architecture\n\n# Per-step traces (faceted by scenario, colored by participant)\nplot_steps(play.per_step, x=\"t\", y_cols=[\"L2.pnl\"], facet_by=\"scenario\", hue=\"participant\",\n title=\"PnL over time by scenario \u00d7 participant\")\n\n# Votes matrix\nplot_votes_matrix(play.votes)\n\n# Scores (mean \u00b1 std) per scenario\nplot_tournament_overview(play.per_episode)\n\n# Architecture diagram (from a spec or a live model)\nplot_architecture(spec(alpha=0.05, drift=0.03, noise=0.05), edges=[(\"L1\",\"L2\")])\n```\n\n---\n\n## Torch policies (optional)\n\n```python\nimport torch\nfrom torch import nn\nfrom heas.torch_integration.policies import MLPPolicy\nfrom heas.torch_integration.params import flatten_params, unflatten_params\nfrom heas.torch_integration.device import pick_device\n\nDEV = pick_device(prefer_gpu=True)\n\nclass TorchPolicy(Policy):\n def __init__(self, name, ctx, policy: nn.Module, x_key=\"L1.price\", pos_scale=0.1):\n super().__init__(name, ctx, alpha=0.0, x_key=x_key)\n self.net = policy.to(DEV)\n self.pos_scale = float(pos_scale)\n def step(self):\n x = float(self.ctx.data.get(self.key, self.prev if self.prev is not None else 100.0))\n if self.prev is not None:\n with torch.no_grad():\n obs = torch.tensor([[x, 1.0]], dtype=torch.float32, device=DEV)\n delta = float(self.net(obs).squeeze().item())\n self.pos += self.pos_scale * delta\n self.pnl += self.pos * (x - self.prev)\n self.prev = x\n self.ctx.data[f\"{self.name}.pnl\"] = self.pnl\n\nnet = MLPPolicy(in_dim=2, out_dim=1, hidden=(16,)).to(DEV)\n\ndef spec_torch(noise=0.05):\n return [\n LayerSpec([StreamSpec(\"L1\", Price, dict(start=100.0, drift=0.03, noise=noise))]),\n LayerSpec([StreamSpec(\"L2\", TorchPolicy, dict(policy=net, x_key=\"L1.price\", pos_scale=0.1))]),\n ]\n```\n\n---\n\n## CLI cheat sheet\n\nHEAS ships a single executable: `heas`\n\n```bash\n# 1) Run a model factory\nheas run --factory path/to/module.py:make_model --steps 20 --episodes 2 --seed 123\n\n# 2) Run a graph/spec/model (auto-coerced)\nheas run-graph --graph heas.examples.hierarchy_example:make_model --steps 20 --episodes 1\n\n# 3) Evolutionary tuning\nheas tune --objective mypkg.objectives:objective --schema mypkg.schemas:SCHEMA \\\n --pop 32 --ngen 6 --strategy nsga2 --out runs/demo\n\n# 4) Evaluate genotypes\nheas eval --objective mypkg.objectives:objective --genotypes genotypes.json\n\n# 5) Arena (scenarios \u00d7 participants)\nheas arena run \\\n --builder mypkg.builders:build_model \\\n --scenarios '{\"grid\":{\"region\":[\"A\",\"B\"],\"gov\":[\"Central\",\"Federal\"]}}' \\\n --participants \"TeamA,TeamB\" \\\n --steps 20 --episodes 3 --seed 123 --save-dir out/\n\n# 6) Tournament with scoring + voting\nheas tournament play \\\n --builder mypkg.builders:build_model \\\n --scenarios '{\"grid\":{\"region\":[\"A\",\"B\"],\"gov\":[\"Central\",\"Federal\"]}}' \\\n --participants [\"TeamA\",\"TeamB\"] \\\n --score mypkg.scoring:score_fn --voter argmax \\\n --steps 25 --episodes 5 --seed 123 --save-dir out/\n\n# 7) Visualizations from saved tables/JSON\nheas viz steps --file out/per_step.csv --x t --facet scenario --hue participant --save out/steps.png\nheas viz votes --file out/votes.csv --save out/votes.png\nheas viz arch --graph mypkg.graphs:SPEC --save out/arch.png\nheas viz log --file runs/demo/log.json --save out/log.png\nheas viz pareto --file runs/demo/pareto.json --title \"Pareto\" --save out/pareto.png\n```\n\n---\n\n## Project layout\n\n```\nheas/\n api.py # simulate(), optimize(), evaluate()\n config.py # Experiment, Algorithm, Evaluation\n hierarchy/ # layers, streams, graph & orchestrator\n agent/ # generic runner utilities (step episodes)\n evolution/ # evolutionary toolbox & algorithms\n game/ # scenarios, arena, tournament, artifacts, voting\n torch_integration/ # policies, params flatten/unflatten, device helpers\n vis/ # plotting utilities (steps, votes, Pareto, architecture)\n cli/ # 'heas' CLI entrypoint\n examples/ # runnable examples\n```\n\n---\n\n## Concepts\n\n* **Stream**: A modular process implementing step() and optional metrics_step() / metrics_episode(), using ctx.data.\n* **Layer**: An ordered collection of streams; layers execute sequentially.\n* **Graph / Model**: The simulation composed of layers, orchestrated with a clock and shared context.\n* **Experiment**: Defines the model factory, number of steps, episodes, and RNG seed.\n* **Algorithm**: Manages evolutionary search logic, including objectives, gene schemas, and optimization parameters.\n* **Arena/Tournament**: Evaluates different participant models across scenarios, with scoring and voting for outcome determination.\n\n### Metric hooks\n\n* `metrics_step(self) -> dict`: per-step metrics (merged into the per-step table).\n* `metrics_episode(self) -> dict`: final metrics (merged into the episode summary).\n\n### Seeding & reproducibility\n\n* `Experiment.seed` sets the episode seed.\n* Build your own RNGs inside streams if you need independent streams.\n\n---\n\n## Configuration objects\n\n```python\nfrom heas.config import Experiment, Algorithm, Evaluation\n```\n\n* **Experiment**: `model_factory`, `steps`, `episodes`, `seed`.\n* **Algorithm**: `objective_fn`, `genes_schema`, `pop_size`, `ngen`, `strategy`, `cx_prob`, `mut_prob`, `out_dir`.\n\n * **Multi\u2011objective**: set `algo.fitness_weights = (-1.0, -1.0, ...)` to declare objectives (negative = minimize).\n* **Evaluation**: batch evaluate a list of genotypes with an objective.\n\nGene schemas live in `heas.schemas.genes` (e.g., `Real`, `Int`, `Bool`, `Cat`).\n\n---\n\n## Visualizations\n\n`heas.vis` provides ready plots:\n\n* `plot_steps(df, x, y_cols, facet_by, hue)` \u2014 per-step traces.\n* `plot_tournament_overview(per_episode)` \u2014 score bars by scenario.\n* `plot_votes_matrix(votes)` \u2014 episode winners by scenario.\n* `plot_logbook_curves(logbook)` \u2014 min/avg/max over generations.\n* `plot_pareto_front(points)` \u2014 scatter of two objectives.\n* `plot_architecture(spec_or_model, edges=None)` \u2014 layer/stream diagram.\n\nAll functions return a Matplotlib figure.\n\n---\n\n### Citation\nIf you use **HEAS** in your research, please cite our paper:\n\nZhang, R., Nie, L., Zhao, X. (2025). HEAS: Hierarchical Evolutionary Agent Simulation Framework for Cross-Scale Modeling and Multi-Objective Search. arXiv preprint arXiv:2508.15555\n\n```bibtex\n@article{zhang2025heas,\n title={HEAS: Hierarchical Evolutionary Agent Simulation Framework for Cross-Scale Modeling and Multi-Objective Search},\n author={Zhang, Ruiyu and Nie, Lin and Zhao, Xin},\n journal={arXiv preprint arXiv:2508.15555},\n year={2025},\n}\n```\n\n---\n\n## License\n\n\u00a9 2025. Released under the GNU Lesser General Public License v3.0. \n\n",
"bugtrack_url": null,
"license": "LGPL-3.0-or-later",
"summary": "HEAS: Hierarchical Evolutionary Agent Simulation",
"version": "0.2.0",
"project_urls": null,
"split_keywords": [
"evolutionary computation",
" agent-based simulation",
" hierarchical systems",
" multi-objective optimization"
],
"urls": [
{
"comment_text": null,
"digests": {
"blake2b_256": "597720a8ef73f62cef56793b3371949e710dea85e9dd3de51c1f44fd822b0824",
"md5": "e8990db25a613783d86023b270ae154f",
"sha256": "d98febca7f26b73e0d407faa571f0512f8c600d19af7529c0ca1d5c5485f4e4c"
},
"downloads": -1,
"filename": "heas-0.2.0-py3-none-any.whl",
"has_sig": false,
"md5_digest": "e8990db25a613783d86023b270ae154f",
"packagetype": "bdist_wheel",
"python_version": "py3",
"requires_python": ">=3.9",
"size": 56240,
"upload_time": "2025-08-22T17:33:44",
"upload_time_iso_8601": "2025-08-22T17:33:44.569365Z",
"url": "https://files.pythonhosted.org/packages/59/77/20a8ef73f62cef56793b3371949e710dea85e9dd3de51c1f44fd822b0824/heas-0.2.0-py3-none-any.whl",
"yanked": false,
"yanked_reason": null
},
{
"comment_text": null,
"digests": {
"blake2b_256": "2f0fbed673555717fa8999a9839be6b226331637390b0c5c05c9b631698f850f",
"md5": "4ace3adc1d3ea3df10bb138cdc934120",
"sha256": "30570ed7b59ddfd970d35dd654beeb632bf9f06b3c599a6f6cbf9c984073e311"
},
"downloads": -1,
"filename": "heas-0.2.0.tar.gz",
"has_sig": false,
"md5_digest": "4ace3adc1d3ea3df10bb138cdc934120",
"packagetype": "sdist",
"python_version": "source",
"requires_python": ">=3.9",
"size": 49289,
"upload_time": "2025-08-22T17:33:46",
"upload_time_iso_8601": "2025-08-22T17:33:46.209622Z",
"url": "https://files.pythonhosted.org/packages/2f/0f/bed673555717fa8999a9839be6b226331637390b0c5c05c9b631698f850f/heas-0.2.0.tar.gz",
"yanked": false,
"yanked_reason": null
}
],
"upload_time": "2025-08-22 17:33:46",
"github": false,
"gitlab": false,
"bitbucket": false,
"codeberg": false,
"lcname": "heas"
}
JSON
