This package consists of functionalities useful for basic engineering studies.
Current Implementation : Finite Element Analysis on 2D problems has been implemented.\
In Progress : Literally everything.
[Github Repo Link](https://github.com/sayanbiswas023/mechy)\
[Pypi link](https://pypi.org/project/mechy/)
#INSTALLATION GUIDE:
```
pip install mech
```
```
pip3 install mechy
```
#DOCUMENTATION:
##2D Finite Element Analysis

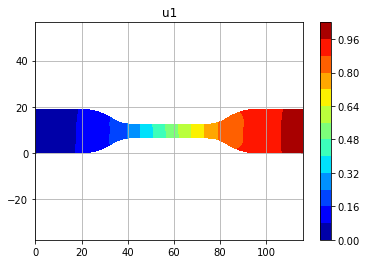

Here is a demo code to display all outputs of a 2D Finite Element Analysis on a dogbone.
```
from mechy import FEM
FILE_PATH='demo_examples/2d_test.txt'
plot_type='all'
s=FEM()
s.fem2d(FILE_PATH,plot_type)
```
```
plot_type='all'
```
Variable plot_type should be among the list of possible output demands :
``` ['u1','u2','s11','s22','s12','e11','e22','e12','all']
```
The input file format is similar to standard simulating softwares as abaqus
```
### Input file syntax:
*Material
500, 0.06 # E and nu
*Node
1, 0.0, 0.0
2, 0.0, 1.0
3, 1.0, 1.0
4, 1.0, 0.0
*Element
1, 1, 2, 3, 4 # elemId, nodeid of vertices
*Step
*Boundary
1, 1, 2, 0.0 # nodeId, dof1, dof2, value
2, 1, 1, 0.0
3, 1, 1, 0.01
4, 1, 1, 0.01
4, 2, 2, 0.0
```
<br>
