# Nautobot VPN App
<p align="center">
<img src="https://raw.githubusercontent.com/iss-world/nautobot-app-vpn/main/docs/images/icon-nautobot_app_vpn.png" width="200" alt="Nautobot VPN App Logo">
</p>
<p align="center">
<a href="https://github.com/iss-world/nautobot-app-vpn/actions/workflows/ci.yml">
<img src="https://github.com/iss-world/nautobot-app-vpn/actions/workflows/ci.yml/badge.svg" alt="CI Status">
</a>
<a href="https://pypi.org/project/nautobot-app-vpn/">
<img src="https://img.shields.io/pypi/v/nautobot-app-vpn.svg" alt="PyPI Version">
</a>
<a href="https://pypi.org/project/nautobot-app-vpn/">
<img src="https://img.shields.io/pypi/dm/nautobot-app-vpn.svg" alt="PyPI Downloads">
</a>
</p>
<p align="center">
<em>An App for <a href="https://www.nautobot.com">Nautobot</a></em>
</p>
## Overview
A Nautobot plugin designed to model, visualize, and manage VPN infrastructure, including IPSec tunnels, IKE gateways, crypto profiles, and dynamic topology diagrams sourced from Neo4j.
---
## Key Features

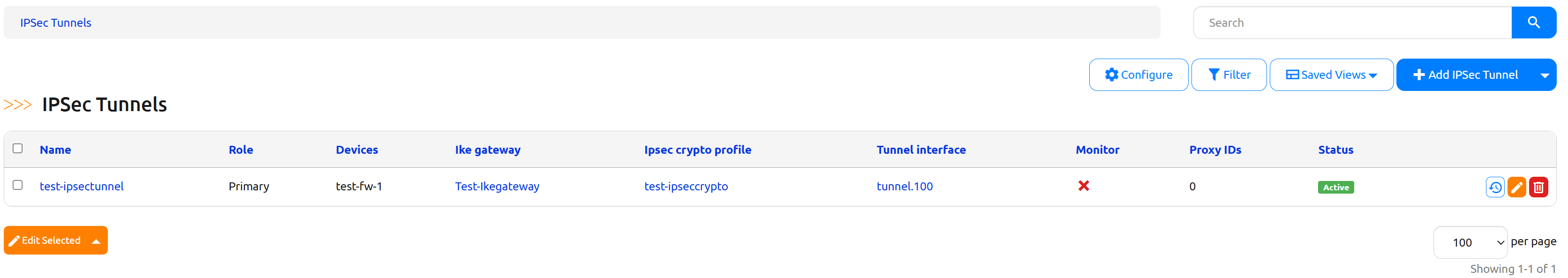

- IKE Gateway and IPSec Tunnel modeling
- Inline or default crypto profile selection
- Dynamic tunnel provisioning form with interface auto-selection
- Topology visualization via Neo4j + Cytoscape
---
## Requirements
- Nautobot >= 2.2.0
- Python >= 3.8
- Neo4j >= 5.0 (for topology view)
---
## Installation
### 1. Install via pip
```bash
pip install nautobot-app-vpn
```
### 2. Enable the plugin
In your `nautobot_config.py`, add to `PLUGINS` and configure Neo4j settings:
```python
PLUGINS = [
"nautobot_app_vpn",
# ...
]
PLUGINS_CONFIG = {
"nautobot_app_vpn": {
"neo4j": {
"uri": "bolt://neo4j:7687",
"user": "neo4j",
"password": "testneo4j", # Change this
}
}
}
```
---
## Docker/Compose Setup (Optional)
If you are using `docker-compose`, include this plugin in your `plugin_requirements.txt`:
```text
nautobot_app_vpn
```
Then rebuild Nautobot:
```bash
docker-compose build nautobot
```
---
## Usage

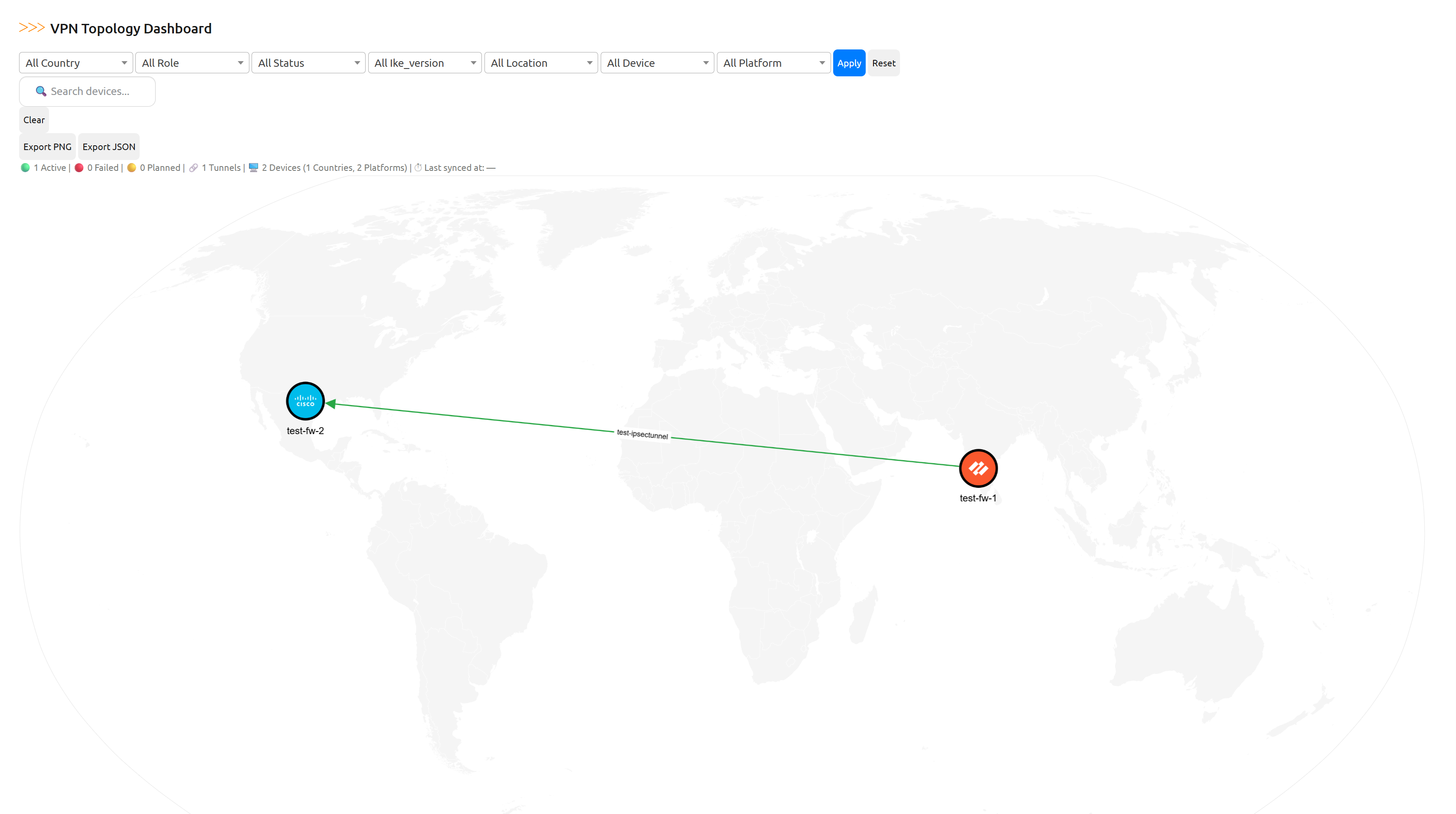

### Topology View
The plugin provides a Neo4j-powered dashboard under **Plugins > VPN Dashboard**, enabling visualization of active IPSec tunnels and their metadata.
### Forms for Provisioning
- Auto-select interfaces based on ISP zone tags
- Auto-populate IPs from synced device data
- Support dynamic IP tunnels

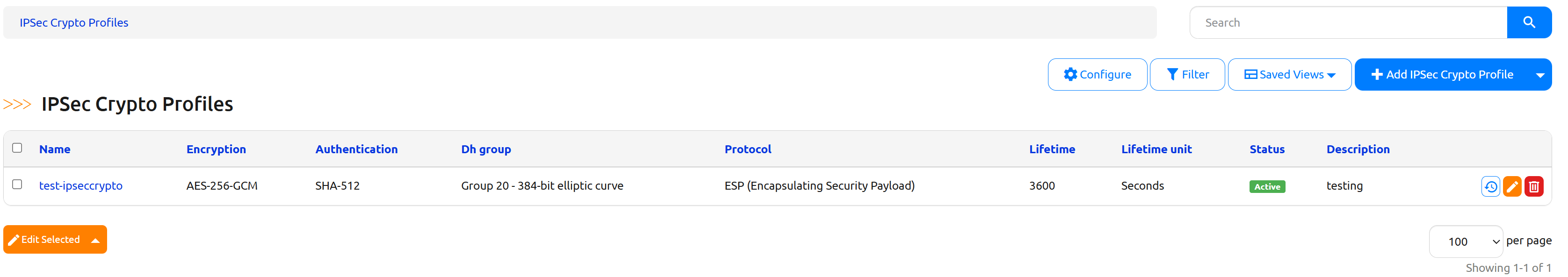

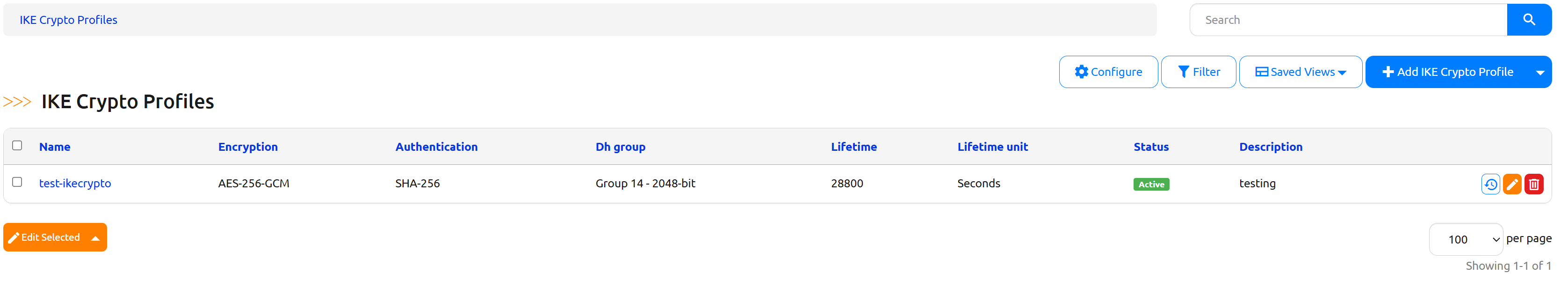

- Create or select IKE/IPsec crypto profiles
---
## Screenshots
---
## Development
### Clone and install in editable mode:
```bash
git clone https://github.com/iss-world/nautobot-app-vpn.git
cd nautobot-app-vpn
poetry install
```
### Run linters locally
```bash
ruff check .
yamllint .
```
---
## Contributing
Pull requests are welcome! Please ensure code follows Nautobot plugin guidelines and passes all checks.
---
## License
Apache License 2.0. See [LICENSE](https://github.com/iss-world/nautobot-app-vpn/blob/main/LICENSE) for details.
---
## Author
Maintained by [@npolisetty26](https://github.com/npolisetty26)
