# ToyTrack
[![Documentation Status](https://readthedocs.org/projects/toytrack/badge/?version=latest)](https://toytrack.readthedocs.io/en/latest/?badge=latest)
ToyTrack is a Python library for generating toy tracking events for particle physics.
**The goal**: To produce a "*good-enough*" event simulation, in as few lines as possible (currently 3 lines), as quickly as possible (currently 0.07 seconds for a 10,000-particle event).
## Installation
Use the package manager [pip](https://pip.pypa.io/en/stable/) to install ToyTrack.
```bash
pip install toytrack
```
Optionally, there are Pytorch dataloaders available for convenience. These require the `torch` package.
```bash
pip install toytrack[torch]
```
# Usage
## Vanilla Event
```python
from toytrack import ParticleGun, Detector, EventGenerator
# Initialize a particle gun which samples uniformly from pt between 2 and 20 GeV,
# initial direction phi between -pi and pi, and creation vertex vx and vy between -0.1 and 0.1 cm
# and which fires a normally-distributed number of particles with mean 20 and standard deviation 5
particle_gun = ParticleGun(num_particles=[20, 5, 'normal'], pt=[2, 20], pphi=[-np.pi, np.pi], vx=[-0.1, 0.1], vy=[-0.1, 0.1])
# Initialize a detector, a barrel-like detector with inner radius of 0.5 cm, and outer radius of 3 cm,
# with 10 layers
detector = Detector(dimension=2).add_from_template('barrel', min_radius=0.5, max_radius=3, number_of_layers=10)
# Initialize an event generator and generate an event
event = EventGenerator(particle_gun, detector).generate_event()
# Access the particles, hits and tracks as needed
particles = event.particles
hits = event.hits
tracks = event.tracks
# Plot the event
event.display()
```
![Example Event](https://raw.githubusercontent.com/murnanedaniel/ToyTrack/main/docs/imgs/example_event_vanilla.png)
## Event with Track Holes
```python
... # as above
# Initialize a detector that randomly drops 10% of hits. If an int N is given, then exactly
# N hits per track are dropped
detector = Detector(dimension=2, hole_inefficiency=0.1).add_from_template('barrel', min_radius=0.5, max_radius=3, number_of_layers=10)
... # as above
# Plot the event
event.display()
```
![Example Event with Holes](https://raw.githubusercontent.com/murnanedaniel/ToyTrack/main/docs/imgs/example_event_holes.png)

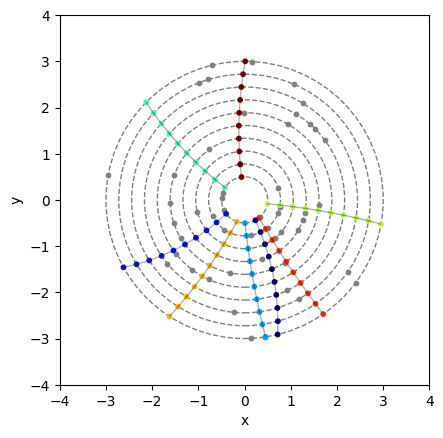

## Event with Noise Hits
```python
... # as above
# Generate event with between 30% and 70% noise hits per real hits. E.g. If the event has 100
# real hits, then between 30 and 70 noise hits will be generated. If an int N is given, then
# the absolute value of N noise hits are generated
event = EventGenerator(particle_gun, detector, noise=[0.3, 0.7]).generate_event()
... # as above
# Plot the event
event.display()
```
![Example Event with Noise](https://raw.githubusercontent.com/murnanedaniel/ToyTrack/main/docs/imgs/example_event_noise.png)
## Event with Multiple Particle Guns
```python
# Initialize one particle gun which samples uniformly from pt between 2 and 3 GeV,
# initial direction phi between -pi and pi, and creation vertex vx and vy between -0.1 and 0.1 cm
particle_gun_1 = ParticleGun(num_particles=[20, 5, 'normal'], pt=[2, 3], pphi=[-np.pi, np.pi], vx=[-0.1, 0.1], vy=[-0.1, 0.1])
# Initialize another particle gun which samples uniformly from pt between 100 and 200 GeV,
# initial direction phi between -pi and pi, and creation vertex vx and vy between -0.1 and 0.1 cm
particle_gun_2 = ParticleGun(num_particles=1, pt=[100, 200], pphi=[-np.pi, np.pi], vx=[-0.1, 0.1], vy=[-0.1, 0.1])
... # as above
# Initialize an event generator with a list of particle guns
event = EventGenerator([particle_gun_1, particle_gun_2], detector).generate_event()
... # as above
# Plot the event
event.display()
```
![Example Event with Multiple Particle Guns](https://raw.githubusercontent.com/murnanedaniel/ToyTrack/main/docs/imgs/example_event_multigun.png)
## Detector with Layer Safety Guarantee
We can ensure that each particle has exactly one hit per layer by setting the `layer_safety_guarantee` flag to `True`.

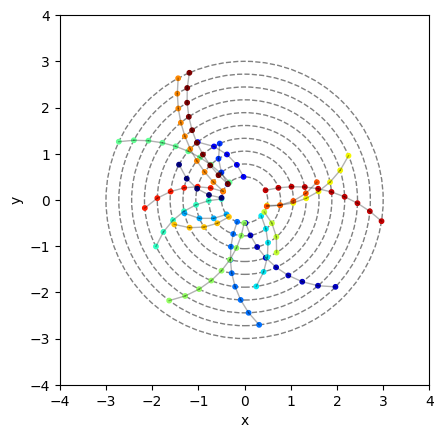

Consider an event with low pT particles:
```python
particle_gun = ParticleGun(num_particles=[20, 5, 'normal'], pt=[1, 3], pphi=[-np.pi, np.pi], vx=[-0.1, 0.1], vy=[-0.1, 0.1])
detector = Detector(dimension=2, layer_safety_guarantee=False).add_from_template('barrel', min_radius=0.5, max_radius=3, number_of_layers=10)
event = EventGenerator(particle_gun, detector).generate_event()
event.display()
```
![Example Event with Low pT Particles](https://raw.githubusercontent.com/murnanedaniel/ToyTrack/main/docs/imgs/example_event_lowpt.png)

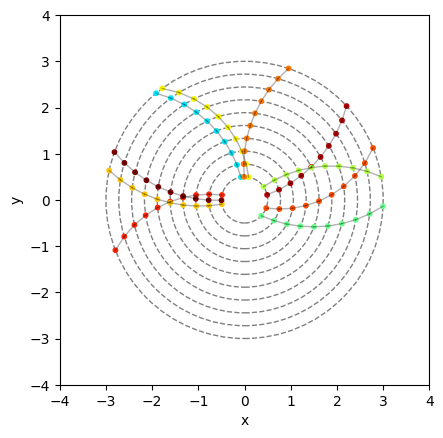

```python
... # as above
# Initialize a detector WITH layer safety guarantee
detector = Detector(dimension=2, layer_safety_guarantee=True).add_from_template('barrel', min_radius=0.5, max_radius=3, number_of_layers=10)
... # as above
event.display()
```
![Example Event with Layer Safety Guarantee](https://raw.githubusercontent.com/murnanedaniel/ToyTrack/main/docs/imgs/example_event_lowpt_layer_safety.png)
Observe that particles with such low pT that they "curled" before the final layer are now removed.
# Performance
ToyTrack is designed to be fast. The following benchmarks were performed on a 64-core AMD EPYC 7763 (Milan) CPU.
![Scaling Study](https://raw.githubusercontent.com/murnanedaniel/ToyTrack/main/docs/imgs/time_scaling.png)
# Data Loading
## Pytorch Dataset
The `TracksDataset` class is a Pytorch dataset which can be used with a Pytorch dataloader. It can return either hitwise structure or trackwise structure.
```python
from toytrack.dataloaders import TracksDataset
config = {
"detector": {
"dimension": 2,
"hole_inefficiency": 0,
"min_radius": 0.5,
"max_radius": 3.,
"number_of_layers": 10,
},
"particle_guns": [
{
"num_particles": [20, 5, 'normal'],
"pt": [2, 20],
"pphi": [-3.14159, 3.14159],
"vx": [-0.1, 0.1],
"vy": [-0.1, 0.1]
}
],
"structure": "hitwise"
}
# initialize dataloader
dataset = TracksDataset(config)
# iterate over dataset
for sample in dataset:
x, mask, pids, event = sample["x"], sample["mask"], sample["pids"], sample["event"]
# x has shape (num_hits, num_features)
```
For trackwise structure:
```python
config = {
... # as above
"detector": {
... # as above
"layer_safety_guarantee": True # Must be True for trackwise structure
... # as above
}
"structure": "trackwise"
}
# initialize dataloader
dataset = TracksDataset(config)
# iterate over dataset
for sample in dataset:
x, mask, pids, event = sample["x"], sample["mask"], sample["pids"], sample["event"]
# x has shape (num_tracks, num_hits_per_track, num_features)
```
## Pytorch DataLoader
```python
from torch.utils.data import DataLoader
dataloader = DataLoader(dataset, batch_size=100, collate_fn=dataset.collate_fn)
# iterate over dataloader
for batch in dataloader:
x, mask, pids, event = batch["x"], batch["mask"], batch["pids"], batch["event"]
# Do something with the batch (which now has an extra batch dimension of size 100)
```
You can also get a straightforward parallelisation, with
```
dataloader = DataLoader(dataset, batch_size=100, collate_fn=dataset.collate_fn, num_workers=16)
```
## Transformations
You can apply transformations to the dataset by passing a list of transformations to the `TracksDataset` class. For example, to convert a trackwise dataset into patches of 3 hits each, you can do the following:
```python
from toytrack.transforms import TrackletPatchify
transform = TrackletPatchify(num_patches_per_track=3)
dataset = TracksDataset(config, transform=transform)
# iterate over dataset
for sample in dataset:
x, mask, pids, event = sample["x"], sample["mask"], sample["pids"], sample["event"]
# x has shape (num_tracks * num_patches_per_track, num_hits_per_patch, num_features)
```
![Example Event with Tracklet Patchify](https://raw.githubusercontent.com/murnanedaniel/ToyTrack/main/docs/imgs/example_event_tracklet_patches.png)
