## XCS-RC
*Accuracy-based Learning Classifier Systems* with **Rule Combining** mechanism, shortly `XCS-RC` for Python3, loosely based on Martin Butz's XCS Java code (2001). Read my PhD thesis [here](https://publikationen.bibliothek.kit.edu/1000046880) for the complete algorithmic description.
*Rule Combining* is novel function that employs inductive reasoning, replacing ~~all Darwinian genetic operation like mutation and crossover~~. It can handle `binaries` and `real`, reaching better *correctness rate* and *population size* quicker than several XCS instances. My earlier papers comparing them can be obtained at [here](https://link.springer.com/chapter/10.1007/978-3-642-17298-4_30) and [here](https://dl.acm.org/citation.cfm?id=2331009).
---
## Relevant links
* [PyPI](https://pypi.org/project/xcs-rc/)
* [Github repo](https://github.com/nuggfr/xcs-rc-python)
* Examples:
* [Classic problems: multiplexer, Markov env](https://github.com/nuggfr/xcs-rc-python)
* [Churn dataset](https://routing.nuggfr.com/churn)
* [Flappy Bird](https://routing.nuggfr.com/flappy)
* [OpenAI Gym](https://routing.nuggfr.com/openai)
---
**Installation**
```
pip install xcs-rc
```
**Initialization**
```
import xcs_rc
agent = xcs_rc.Agent()
```
**Classic Reinforcement Learning cycle**
```
# input: binary string, e.g., "100110" or decimal array
state = str(randint(0, 1))
# pick methods: 0 = explore, 1 = exploit, 2 = explore_it
action = agent.next_action(state, pick_method=1)
# determine reward and apply it, e.g.,
reward = agent.maxreward if action == int(state[0]) else 0.0
agent.apply_reward(reward)
```
**Partially Observable Markov Decision Process (POMDP) environment**
```
# create env and agent
env = xcs_rc.MarkovEnv('maze4') # maze4 is built-in
env.add_agents(num=1, tcomb=100, xmax=50)
agent = env.agents[0]
for episode in range(8000):
steps = env.one_episode(pick_method=2) # returns the number of taken steps
```
**Data classification**
```
agent.train(X_train, y_train)
cm = agent.test(X_test, y_test) # returns the confusion matrix
preds, probs = agent.predict(X) # returns lists of predictions and probabilities
```
**Print population, save it to CSV file, or use append mode**
```
agent.pop.print(title="Population")
agent.save('xcs_population.csv', title="Final XCS Population")
agent.save('xcs_pop_every_100_cycles.csv', title="Cycle: ###", save_mode='a')
```
**Finally, inserting rules to population**
```
# automatically load the last set (important for append mode)
agent.load("xcs_population.csv", empty_first=True)
agent.pop.add(my_list_of_rules) # from a list of classifiers
```
---
## Main Parameters
**XCS-RC Parameters**
* `tcomb`: *combining period*, number of learning cycles before the next rule combining
* `predtol`: *prediction tolerance*, maximum difference between two classifiers to be combined
* `prederrtol`: *prediction error tolerance*, threshold for deletion of inappropriately combined rules
**How to Set**
```
agent.tcomb = 50 # perform rule combining every 50 cycles
agent.predtol = 20.0 # combines rules whose prediction value differences <= 20.0
agent.prederrtol = 10.0 # remove if error > 10.0, after previously below it
```
**Parameters from original XCS**
* ~~all related to mutation and crossover is removed~~
* the others are kept and accessible (e.g., `agent.alpha = 0.15`)
---
## Results
**Classical Problems: `multiplexer` and `Markov environment`:**
![Binary MP11-HIGH](https://raw.githubusercontent.com/nuggfr/xcs-rc-python/master/xcs-rc-mp11-binary.png)
![Real MP6-HIGH](https://raw.githubusercontent.com/nuggfr/xcs-rc-python/master/xcs-rc-mp6-real.png)
![Markov Maze4](https://raw.githubusercontent.com/nuggfr/xcs-rc-python/master/xcs-rc-markov-maze4.png)

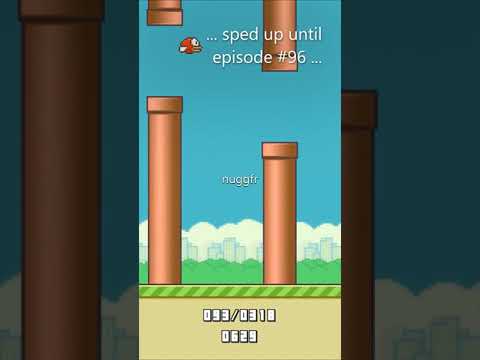

**Flappy Bird from PyGame Learning Environment:**
![Flappy Bird XCS-RC plot](https://raw.githubusercontent.com/nuggfr/xcs-rc-python/master/flappy_plot.png)
[![Flappy Bird XCS-RC youtube](https://img.youtube.com/vi/Fz05s-stCbE/0.jpg)](https://youtu.be/Fz05s-stCbE)

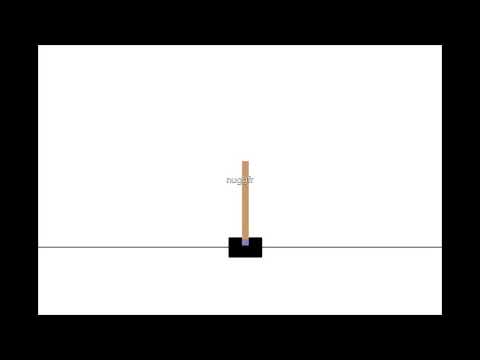

**Youtube: CartPole-v0 Benchmark from OpenAI Gym:**
[![CartPole XCS-RC](https://img.youtube.com/vi/mJoavWV80MM/0.jpg)](https://youtu.be/mJoavWV80MM)
