# Hydrogen Bond Analysis Tool (HBAT) v2
A Python package to automate the analysis of potential hydrogen bonds and similar type of weak interactions like halogen bonds and non-canonical interactions in macromolecular structures, available in Brookhaven Protein Database (PDB) file format. HBAT uses a geometric approach to identify potential hydrogen bonds by analyzing distance and angular criteria between donor-hydrogen-acceptor triplets.
[](https://codecov.io/gh/abhishektiwari/hbat)
[&replace=%241&style=plastic&logo=googlescholar&label=Cited%20By&cacheSeconds=86400)](https://scholar.google.com/citations?view_op=view_citation&hl=en&user=Mb7eYKYAAAAJ&citation_for_view=Mb7eYKYAAAAJ:u-x6o8ySG0sC)
[](https://socket.dev/pypi/package/hbat/overview/2.2.11/py3-none-any-whl)
[](https://www.codefactor.io/repository/github/abhishektiwari/hbat/overview/main)
## Background
HBAT v2 is a modern Python re-implementation of the original Perl-based tool developed by [Abhishek Tiwari](https://www.abhishek-tiwari.com) and Sunil Kumar Panigrahi.
## Features
- **Comprehensive Analysis**: Detect and analyze potential hydrogen bonds, halogen bonds, and X-H...π interactions
- **Dual Interface**: Both graphical (tkinter) and command-line interfaces

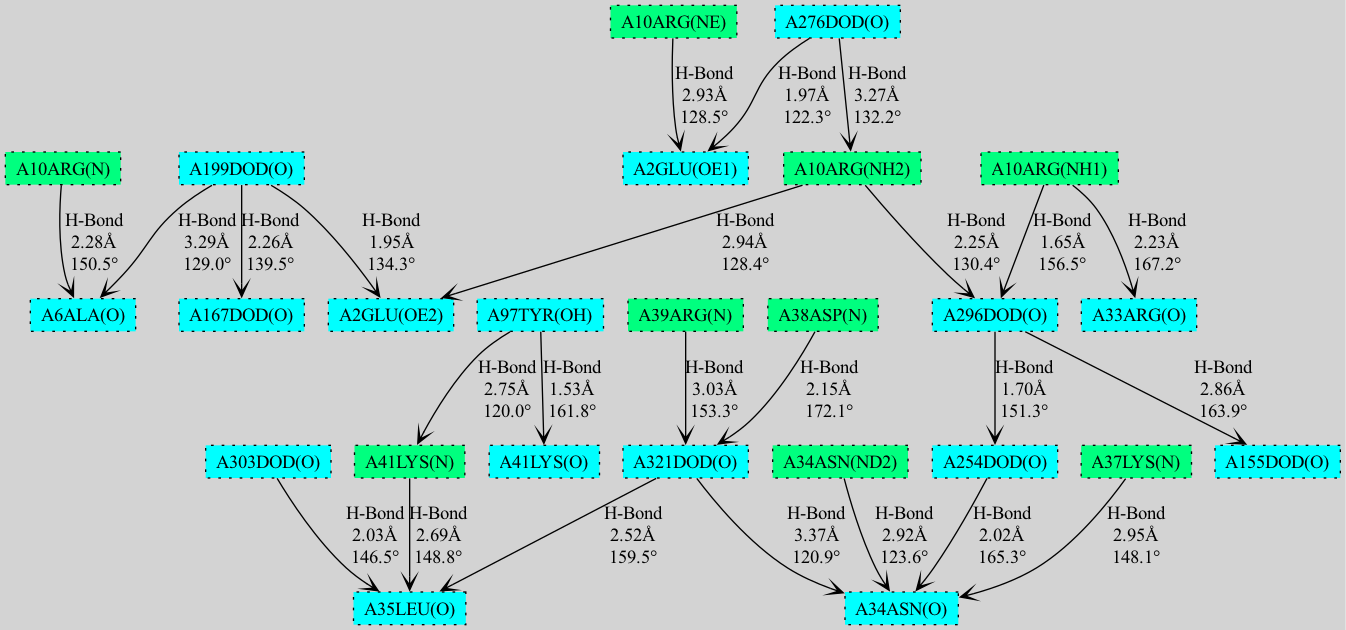

- **Advanced Visualization**: Choice between NetworkX/matplotlib and GraphViz renderers for cooperativity chain visualization
- **High-Quality Graphics**: Export visualizations to PNG, SVG, PDF with configurable resolution
- **Interactive GUI**: Scrollable visualizations with dynamic layout switching and engine selection
- **Parameter Presets**: Built-in presets for different structure types (high-resolution, NMR, membrane proteins, etc.)
- **Flexible Parameters**: Customizable distance cutoffs, angle thresholds, and analysis modes.
- **Multiple Output Formats**: Text, CSV, and JSON export options
- **Fast Processing**: Optimized algorithms for efficient analysis of large structures
- **Cross-Platform**: Works on Windows, macOS, and Linux.
Please review [HBAT documentation](https://hbat.abhishek-tiwari.com/) for more details.
### Supported Interactions
1. **Hydrogen Bonds**: O-H...O, N-H...O, N-H...N, and other X-H...Y interactions
2. **Halogen Bonds**: C-X...Y interactions (X = F, Cl, Br, I; Y = N, O, S)
3. **X-H...π Interactions**: Hydrogen bonds to aromatic ring systems
Please review [HBAT documentation](https://hbat.abhishek-tiwari.com/) for more details.
## Installation
### Option 1: Install from PyPI (Recommended)
```bash
pip install hbat
```
Run HBAT Command-Line Interface (CLI) using `hbat` or launch HBAT GUI using `hbat-gui`.
### Option 2: Install from Source
```bash
git clone https://github.com/abhishektiwari/hbat.git
cd hbat
pip install -e .
```
Alternatively,
```bash
pip install git+https://github.com/abhishektiwari/hbat.git
```
Run HBAT Command-Line Interface (CLI) using `hbat` or launch HBAT GUI using `hbat-gui`.
### Option 3: Install from Conda
```
conda install -c hbat hbat
```
### Requirements
#### System Requirements
- **Python**: 3.9 or higher
- **tkinter**: tkinter is included with Python standard library on most systems. However, on Mac install Python and tkinter using `brew`.
```
brew install python python3-tk
```
- **GraphViz** (Optional): Required for advanced cooperativity chain visualization with high-quality graph rendering. HBAT will automatically fall back to NetworkX/matplotlib visualization if GraphViz is not available.
**Install GraphViz:**
On **Ubuntu/Debian**:
```bash
sudo apt-get update
sudo apt-get install graphviz
```
On **macOS** (using Homebrew):
```bash
brew install graphviz
```
On **Windows**:
- Download and install from [GraphViz official website](https://graphviz.org/download/)
- Or using Chocolatey: `choco install graphviz`
- Or using conda: `conda install -c conda-forge graphviz`
**Note**: After installing GraphViz, restart your terminal/command prompt before running HBAT to ensure the GraphViz executables are available in your PATH.
## Usage
### Graphical Interface
Launch the GUI application:
```bash
hbat-gui
```

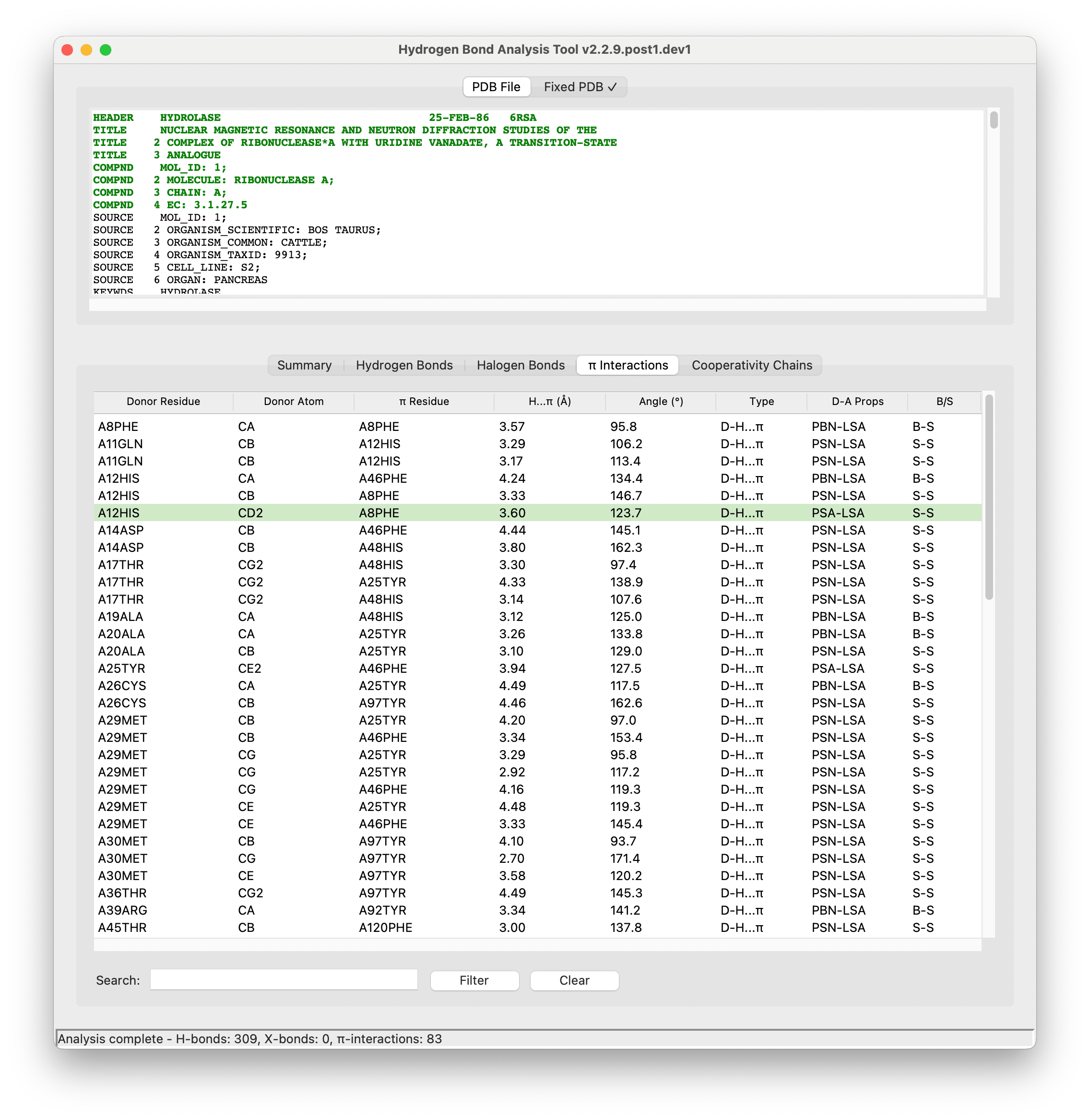

The GUI provides,
- File browser for loading PDB files
- Parameter configuration panels
- Tabbed results display
- Export and visualization options
### Command-Line Interface
Basic usage:
```bash
hbat input.pdb
```
#### Output Format Options
HBAT supports multiple output formats with automatic detection based on file extension:
```bash
# Single file outputs (format auto-detected from extension)
hbat input.pdb -o results.txt # Text format
hbat input.pdb -o results.csv # CSV format (single file with all data)
hbat input.pdb -o results.json # JSON format (single file with all data)
# Multiple file outputs (separate files per interaction type)
hbat input.pdb --csv results # Creates results_h_bonds.csv, results_x_bonds.csv, etc.
hbat input.pdb --json results # Creates results_h_bonds.json, results_x_bonds.json, etc.
```
With custom parameters:
```bash
hbat input.pdb -o results.csv --hb-distance 3.0 --mode local
```
#### List Available Presets
```bash
hbat --list-presets
```
#### Use a specific preset
```bash
hbat protein.pdb --preset high_resolution
hbat membrane_protein.pdb --preset membrane_proteins
```
#### Use preset with custom overrides
```bash
hbat protein.pdb --preset drug_design_strict --hb-distance 3.0 --verbose
```
#### CLI Options
```
positional arguments:
input Input PDB file
optional arguments:
-h, --help show this help message and exit
-o OUTPUT, --output OUTPUT
Output file (format auto-detected from extension: .txt, .csv, .json)
--json JSON Export to multiple JSON files (base name for files)
--csv CSV Export to multiple CSV files (base name for files)
Preset Options:
--preset PRESET Load parameters from preset file (.hbat or .json)
--list-presets List available example presets and exit
Analysis Parameters:
--hb-distance HB_DISTANCE
Hydrogen bond H...A distance cutoff in Å (default: 3.5)
--hb-angle HB_ANGLE Hydrogen bond D-H...A angle cutoff in degrees (default: 120)
--da-distance DA_DISTANCE
Donor-acceptor distance cutoff in Å (default: 4.0)
--xb-distance XB_DISTANCE
Halogen bond X...A distance cutoff in Å (default: 4.0)
--xb-angle XB_ANGLE Halogen bond C-X...A angle cutoff in degrees (default: 120)
--pi-distance PI_DISTANCE
π interaction H...π distance cutoff in Å (default: 4.5)
--pi-angle PI_ANGLE π interaction D-H...π angle cutoff in degrees (default: 90)
--covalent-factor COVALENT_FACTOR
Covalent bond detection factor (default: 1.2)
--mode {complete,local}
Analysis mode: complete (all interactions) or local (intra-residue only)
Output Control:
--verbose, -v Verbose output with detailed progress
--quiet, -q Quiet mode with minimal output
--summary-only Output summary statistics only
Analysis Filters:
--no-hydrogen-bonds Skip hydrogen bond analysis
--no-halogen-bonds Skip halogen bond analysis
--no-pi-interactions Skip π interaction analysis
```
## License
This project is licensed under the MIT License - see the [LICENSE](LICENSE) file for details.
## Citation
If you use HBAT in your research, please cite:
```
@software{tiwari2025hbat,
author = {Tiwari, Abhishek},
title = {HBAT: Hydrogen Bond Analysis Tool},
version = {v2},
year = {2025},
url = {https://github.com/abhishektiwari/hbat}
}
```
```
@article{tiwari2007hbat,
author = {Tiwari, Abhishek and Panigrahi, Sunil Kumar},
doi = {10.3233/ISI-2007-00337},
journal = {In Silico Biology},
month = dec,
number = {6},
title = {{HBAT: A Complete Package for Analysing Strong and Weak Hydrogen Bonds in Macromolecular Crystal Structures}},
volume = {7},
year = {2007}
}
```
## Contributing
See our [contributing guide](CONTRIBUTING.md) and [development guide](https://hbat.abhishek-tiwari.com/development). At a high-level,
1. Fork the repository
2. Create a feature branch
3. Make your changes
4. Add tests if applicable
5. Submit a pull request
